TNGA 1603□□-BASED
-
MGMN□□□-BASED
-
MRMN□□□-BASED
-
TOP-NOTCH (NR)
-
TOP-NOTCH (ND)

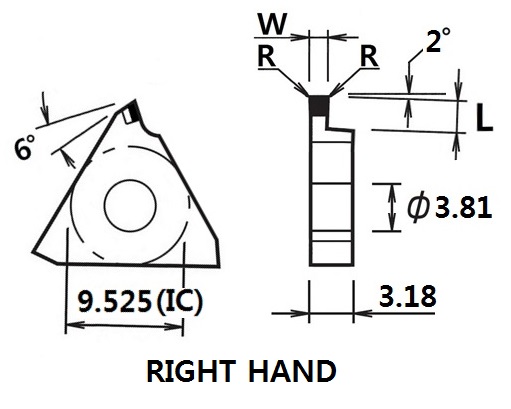

| TNGA 1603□□-BASED |
ITEM |
DIMENSIONS(mm) |
| NAME |
W±0.02 |
R |
L |
|
TNGA1603ZG-10020R/L |
1.00 |
0.1 |
2.0 |
| TNGA1603ZG-11020R/L |
1.10 |
0.1 |
2.0 |
| TNGA1603ZG-12020R/L |
1.20 |
0.1 |
2.0 |
| TNGA1603ZG-13020R/L |
1.30 |
0.1 |
2.0 |
| TNGA1603ZG-14020R/L |
1.40 |
0.1 |
2.0 |
| TNGA1603ZG-15020R/L |
1.50 |
0.1 |
2.0 |
| TNGA1603ZG-16020R/L |
1.60 |
0.1 |
2.0 |
| TNGA1603ZG-17520R/L |
1.75 |
0.1 |
2.0 |
| TNGA1603ZG-20025R/L |
2.00 |
0.1 |
2.5 |
| TNGA1603ZG-22525R/L |
2.25 |
0.1 |
2.5 |
| TNGA1603ZG-25025R/L |
2.50 |
0.1 |
2.5 |
| TNGA1603ZG-27525R/L |
2.75 |
0.1 |
2.5 |
| TNGA1603ZG-30030R/L |
3.00 |
0.2 |
3.0 |
| TNGA1603ZG-32030R/L |
3.20 |
0.2 |
3.0 |
|
* 他の寸法は別途承ります。 |
| MGMN□□□-BASED |
ITEM |
DIMENSIONS(mm) |
| NAME |
W±0.02 |
R |
L |
T |
H |
 |
 |
MGGN200 |
2.0 |
0.2 |
16.0 |
1.6 |
3.5 |
| MGGN300 |
3.0 |
specify |
21.0 |
2.3 |
4.8 |
| MGGN400 |
4.0 |
specify |
21.0 |
3.3 |
4.8 |
| MGGN500 |
5.0 |
specify |
26.0 |
4.1 |
5.8 |
| MGGN600 |
6.0 |
specify |
26.0 |
5.0 |
5.8 |
| MGGN800 |
8.0 |
specify |
31.0 |
6.0 |
6.5 |
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
* 他の寸法は別途承ります。 |
| MRMN□□□-BASED |
ITEM |
DIMENSIONS(mm) |
| NAME |
W±0.05 |
R |
L |
T |
H |
 |
 |
MRMN300 |
3.0 |
1.5 |
21.0 |
2.3 |
4.8 |
| MRMN400 |
4.0 |
2.0 |
21.0 |
3.3 |
4.8 |
| MRMN500 |
5.0 |
2.5 |
26.0 |
4.1 |
5.8 |
| MRMN600 |
6.0 |
3.0 |
26.0 |
5.0 |
5.8 |
| MRMN800 |
8.0 |
4.0 |
31.0 |
6.0 |
6.5 |
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
* 他の寸法は別途承ります。 |
| TOP-NOTCH TYPE (NR) |
ITEM |
DIMENSIONS(mm) |
| NAME |
W±0.05 |
R |
W1 |
H |
|
 |
 |
NR-3031 R/L |
1.58 |
0.79 |
4.95 |
8.74 |
|
| NR-3047 R/L |
2.39 |
1.19 |
4.95 |
8.74 |
|
| NR-3062 R/L |
3.18 |
1.59 |
4.95 |
8.74 |
|
| NR-3078 R/L |
3.96 |
1.98 |
4.95 |
8.74 |
|
| NR-4062 R/L |
3.18 |
1.59 |
6.48 |
11.51 |
|
| NR-4094 R/L |
4.78 |
2.39 |
6.48 |
11.51 |
|
| NR-4125 R/L |
6.36 |
3.18 |
6.48 |
11.51 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
* 他の寸法は別途承ります。 |

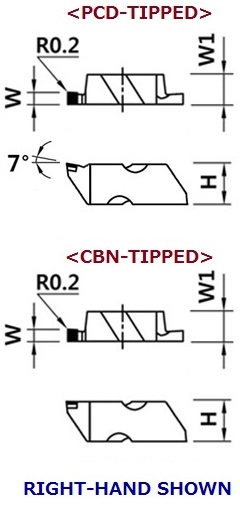

| TOP-NOTCH TYPE (ND) |
ITEM |
DIMENSIONS(mm) |
| NAME |
W±0.02 |
W1 |
H |
|
|
 |
☞ 右刃(R)または左刃(L)を
選択してください。
 |
NG-2031 R/L |
0.79 |
3.81 |
5.56 |
|
|
| NG-2041 R/L |
1.04 |
3.81 |
5.56 |
|
|
| NG-2047 R/L |
1.19 |
3.81 |
5.56 |
|
|
| NG-2058 R/L |
1.47 |
3.81 |
5.56 |
|
|
| NG-2062 R/L |
1.58 |
3.81 |
5.56 |
|
|
| NG-2094 R/L |
2.39 |
3.81 |
5.56 |
|
|
| NG-2125 R/L |
3.18 |
3.81 |
5.56 |
|
|
| NG-3047 R/L |
1.19 |
4.95 |
8.74 |
|
|
| NG-3062 R/L |
1.58 |
4.95 |
8.74 |
|
|
| NG-3072 R/L |
1.84 |
4.95 |
8.74 |
|
|
| NG-3078 R/L |
1.99 |
4.95 |
8.74 |
|
|
| NG-3088 R/L |
2.24 |
4.95 |
8.74 |
|
|
| NG-3094 R/L |
2.39 |
4.95 |
8.74 |
|
|
| NG-3097 R/L |
2.46 |
4.95 |
8.74 |
|
|
| NG-3105 R/L |
2.66 |
4.95 |
8.74 |
|
|
| NG-3110 R/L |
2.79 |
4.95 |
8.74 |
|
|
| NG-3122 R/L |
3.09 |
4.95 |
8.74 |
|
|
| NG-3125 R/L |
3.17 |
4.95 |
8.74 |
|
|
| NG-3142 R/L |
3.60 |
4.95 |
8.74 |
|
|
| NG-3156 R/L |
3.96 |
4.95 |
8.74 |
|
|
| NG-3178 R/L |
4.52 |
4.95 |
8.74 |
|
|
| NG-3185 R/L |
4.69 |
4.95 |
8.74 |
|
|
| NG-3189 R/L |
4.80 |
4.95 |
8.74 |
|
|
| NG-4125 R/L |
3.18 |
6.48 |
11.51 |
|
|
| NG-4189 R/L |
4.80 |
6.48 |
11.51 |
|
|
| NG-4213 R/L |
5.41 |
6.48 |
11.51 |
|
|
| NG-4219 R/L |
4.80 |
6.48 |
11.51 |
|
|
| NG-4250 R/L |
6.35 |
6.48 |
11.51 |
|
|
| NG-5250 R/L |
6.35 |
9.65 |
17.48 |
|
|
| NG-5281 R/L |
7.13 |
9.65 |
17.48 |
|
|
| NG-5312 R/L |
7.92 |
9.65 |
17.48 |
|
|
| NG-5344 R/L |
8.73 |
9.65 |
17.48 |
|
|
| NG-5375 R/L |
9.52 |
9.65 |
17.48 |
|
|
| NG-6250 R/L |
6.35 |
9.73 |
11.51 |
|
|
| NG-6281 R/L |
7.13 |
9.73 |
11.51 |
|
|
| NG-6312 R/L |
7.92 |
9.73 |
11.51 |
|
|
| NG-6344 R/L |
8.73 |
9.73 |
11.51 |
|
|
| NG-6375 R/L |
9.52 |
9.73 |
11.51 |
|
|
* 他の寸法は別途承ります。
|
|
